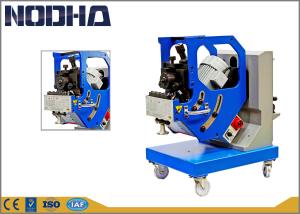

Cold Plate Beveling Machine For 6 - 30 Mm Thick Steel Plate V/Y Type

Name: Cold Plate Beveling Machine For 6 30 Mm Thick Steel Plate VY Type
Brand: NODHA
Price: 1 USD

Wholesale Cold Plate Beveling Machine For 6 - 30 Mm Thick Steel Plate V/Y Type from china suppliers

Brand Name : NODHA

Model Number : GBM-12DR

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 240 Sets Per Year

Delivery Time : 10 Working Days

Packaging Details : 96*64*118 cm Plywood Case

Motor voltage : 380V 3PH 50Hz

Motor power : 1500 w

Bevel speed : 1.5 To 2.6m/min

Bevel angle : 25~45 deg(adjustable)

Plate thick : 6 to 30mm

Max bevel width : 18mm

Process tube size : 150mm dia (min)

Contact Now

Reversible Groove Machine Cold Plate Beveling Machine for 6 to 30 mm thick steel plate V/Y Type

Introduction

GBM-12DR automatic type Plate beveling machine speed 1.5 to 2.6m/min, processing tube and plate thickness 6 to 30mm,and tensile strength of the material is 40kg/mm, single beveling width is 16mm. by beveling 4 to 5 times,the width can be 28mm. and the angle is adjustable between 25 to 45 degree.

Features

Can process steel, pipe head

Can do V/Y type of bevel.

Cold cutting, non-oxidation on the surface

Adopt Japan original motor and reduction gear box

Ultra-high energy efficient, IE3 standard.

No scrap iron splash, Low noise. more safe and environmental

Beveling angle can be adjusted between 25 to 45 deg.

Application

The products used in aerospace, petrochemical industry, pressure vessel, shipbuilding, metallurgy and unloading processing factory welding manufacturing field.

Cold Plate Beveling Machine For 6 - 30 Mm Thick Steel Plate V/Y Type

Machine parameters

Motor voltage:AC 380V 50Hz	Motor power:1400W
motor speed:1400r/min	bevel speed:1.5~2.6m/min
Single bevel width:16mm	Max bevel width: 18mm
Thickness of the plate:6~30mm	Plate bevel angle :25°~ 45 º
Net weight :175kg	Mini clamping plate width:≥115mm

Exhibition

Cold Plate Beveling Machine For 6 - 30 Mm Thick Steel Plate V/Y Type

Certificate

Cold Plate Beveling Machine For 6 - 30 Mm Thick Steel Plate V/Y Type

After-sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
